Controls Engineering & Programming

Controls Engineering & BAS Programming

Control drawings, points lists, sequences of operation, controller selection, database development, logic, graphics, alarms and trends — engineered so the system can be operated and serviced by someone other than the person who built it.

Points lists
Sequences
I/O mapping
Graphics
Alarm strategy
Trends
Integration mapping

Discuss Controls Engineering Request a Quote

Engineering scope

What controls engineering covers

Control drawings and schematics
Points lists
Sequences of operation
Controller selection and I/O mapping
Network architecture
BAS database development
Control logic programming
Graphics and dashboards
Alarm strategy
Schedules and calendars
Trend setup
Integration mapping
Remote access coordination
Commissioning support

Operator graphics

What a good operator screen shows

Graphics are where most facility teams meet the system. A screen that hides the answer is worse than no screen at all.

Current state, not decoration

Live values, commanded versus actual position, and equipment status — arranged the way the mechanical system is actually laid out.

Setpoints in context

The setpoint shown next to the measurement it governs, so a drift is visible without opening a second screen.

Override visibility

Anything in manual or overridden flagged clearly on the screen, because forgotten overrides cause more comfort calls than failures do.

Alarm state at a glance

Active alarms surfaced on the equipment they belong to, not only in a separate list.

A path to the trend

One click from a value to its history. If proving what happened takes five steps, nobody will do it.

Navigation that matches the building

Floor plans and system trees that reflect how your staff describe the building, not how the controller network is wired.

Sequences of operation

A sequence is a contract, and it should read like one

A sequence of operation should state, in plain language, what the system does in every mode it can be in — occupied, unoccupied, warm-up, night setback, alarm, failure and manual. It should name the setpoints, the limits, the interlocks and the conditions that move the system between modes.

When we are handed a sequence, we read it for the cases it does not cover before we program it: what happens when a sensor fails, when two requirements conflict, when the equipment cannot meet the reset. Those gaps are cheaper to resolve on paper than during commissioning.

When there is no sequence — which is the norm on retrofits — we write one, review it with you and the engineer of record where there is one, and use the approved version as the basis for both programming and functional testing. The document you approve is the document we test against.

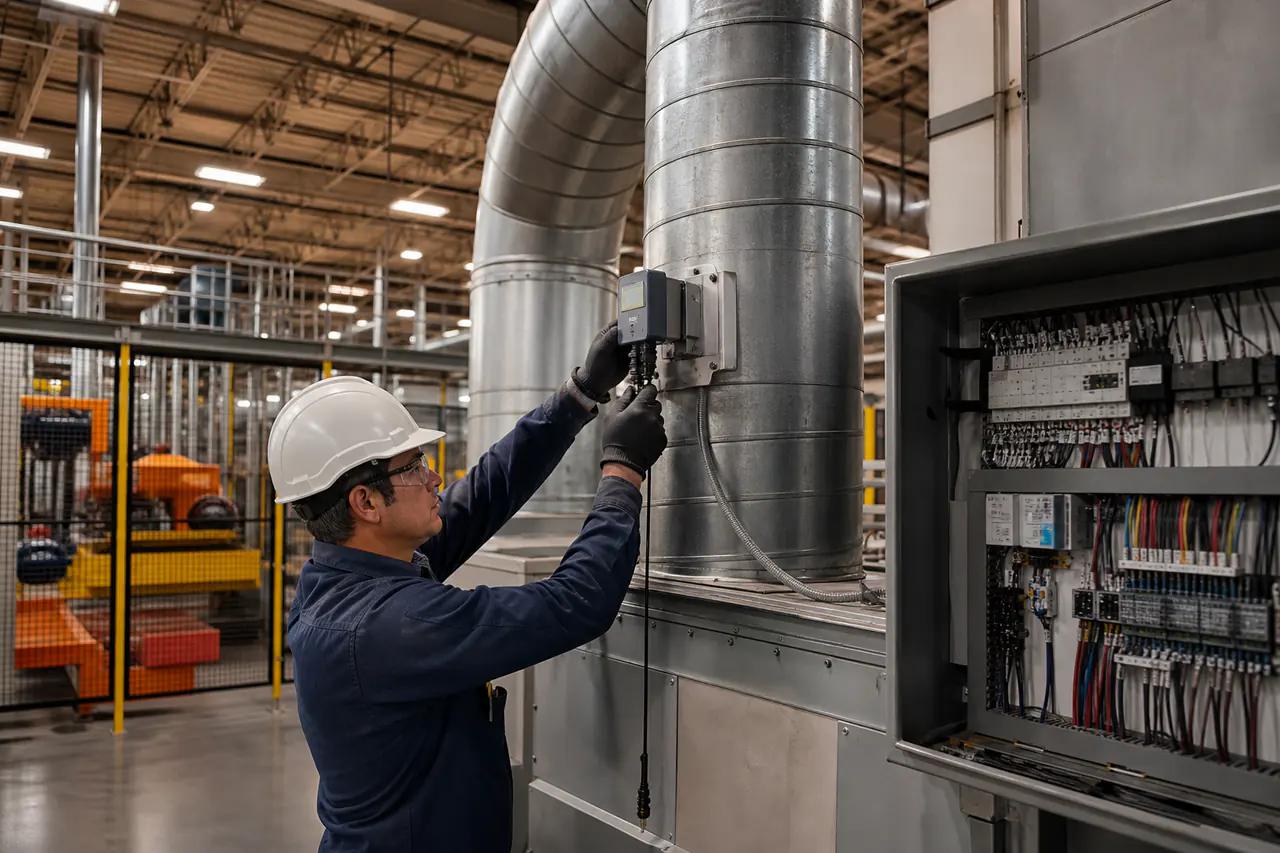

Controls engineer reviewing facility systems and operating data — Engineering turns operating intent into coordinated points, sequences and interfaces.

Controls technician commissioning building automation equipment in a mechanical room

Commercial facility operator reviewing building automation performance

Data structure

Engineered so the data is usable later

Analytics, fault detection and energy work all depend on decisions made during programming.

Consistent point naming

A convention applied across every controller, so points can be queried by system, equipment and function.

Meaningful units & scaling

Correct engineering units and ranges, verified against the device rather than assumed from a template.

Trend intervals that answer questions

Sampling fast enough to see the behaviour you will need to diagnose, retained long enough to compare seasons.

Alarm priorities

A hierarchy that distinguishes "building at risk" from "someone should look at this eventually".

Documented integration mapping

Every integrated point traced to its source device, register or object identifier.

Backup & version control

Database backups taken at defined milestones and handed over, so the system can be restored without us.

Questions

Frequently asked questions

Yes, and it is one of the more valuable things we do. A constructability review catches conflicts between the sequence and the equipment, undefined failure modes, and setpoints the installed equipment cannot achieve. Resolving those during design costs a meeting; resolving them during commissioning costs a change order.

Frequently. Reprogramming, graphics rebuilds and sequence corrections on existing systems are common requests. What determines feasibility is whether the platform requires manufacturer-specific software or licensing that we can legitimately obtain. We verify that before quoting.

You should. We hand over database backups and documentation as part of turnover, and we will tell you plainly if a platform you are considering restricts that — because it materially affects who can service the building later.

Where the owner has authorized remote access and the network path exists, yes — much of database work, graphics and sequence adjustment can be done remotely, which shortens response time and reduces cost. Point-to-point verification and functional testing still require someone on site.

Next step

Have a sequence to review, or a system that needs reprogramming?

Send what you have — a specification, a points list, a screenshot of the existing graphics, or just a description of what the building is doing wrong. We will tell you what we would look at first.
